Robust, Wear-free, Energy Saving!

•   OUR STRENGTHS :

     -  Over 30 Years Design & Manufacturing Experiences in Magnetic

         Induction Voltage Regulators & Stabilizers.

     -  Complete Testing Facilities to Have Strict QA / QC Tests.

     -  Customization.  To be Your Consultant to design the most suitable

         unit with reasonable price to satisfy with your demands.

• Capacity: 100 -- 6,000KVA

•  ROBUST DESIGN, WEAR-FREE :

     Brush-less.  NO Contact Points. NO MOVING PARTS to wear out.  NO Sparks.

     Capable of sustaining spikes & Non-linear Load Impulses.

•  "ENERGY SAVING" AVR

     1.  HIGH VA Efficiency (>/= 98% from 0 to 100% load)

     2.  LOW Steel Loss

     3.  LOW Copper Loss

     4.  LOW Temperature Rise

     5.  LOW No Load Power Consumption

     6.  HIGH Input Power Factor (0.95 ~1)

•   ADVANTAGES :

     1.  Reduce your Electricity Bill !!!

     2.  Improve Plant Performance & Efficiency

     3.  Increase Facility's Profitability

     4.  Increase Equipment Life Span

     5.  Reduce Production Costs

     6.  Reduce Maintenance Costs

•   AT LEAST 20 YEARS SERVICE LIFE

    In addition to its inherently contactless design,

    by use of high quality materials like Nippon Steel # H14

    silicon steel sheets, "PEWC" enameled wires, DuPont

    Nomex insulation papers, single phase induction motor

    and other industrial grade components, and strict quality

    controlled inspection, at least 20 years life span is warranty

    under normal operation.

•  HIGH RELIABILITY & ENDURABLE, TOLERATE SEVERE ENVIRONMENTS

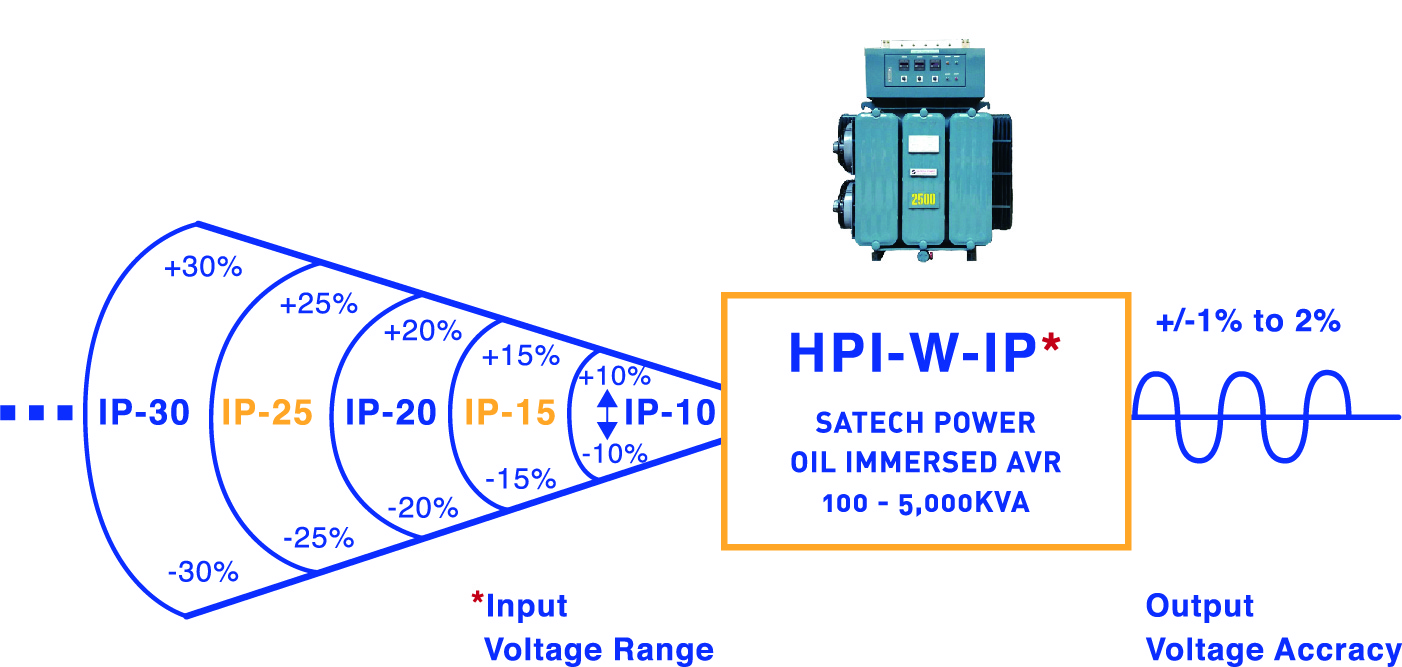

•  WIDE INPUT VOLTAGE RANGE: ± 15% (OPTION: ±20% ~ 50%)

•   ±1% ~±2% PRECISE VOLTAGE REGULATION

•   VOLTAGE REGULATING METHOD: ELECTRO-MAGNETIC INDUCTION

     THEORY (LINEAR ADJUSTMENT)

     -  Adopt electromagnetic induction working theory to do linear

         voltage regulation.

     -  No contact movement. No tap from the transformer, there is

         no coupling noise, no boost or sag, to ensure the output voltage

         accuracy of I-AVR can be stabilized within a safety working range.

•   SUPER LOAD-CARRYING CAPACITY:

     -  110% / 1hour; 120% / 30mins; 150% / 15mins; 200% / 2mins;

         300% / 12secs; 500% / 6 sec

     -  Designed to withstand HEAVY loads currents.

     -  Designed to withstand HIGH motor startup/inrush currents.

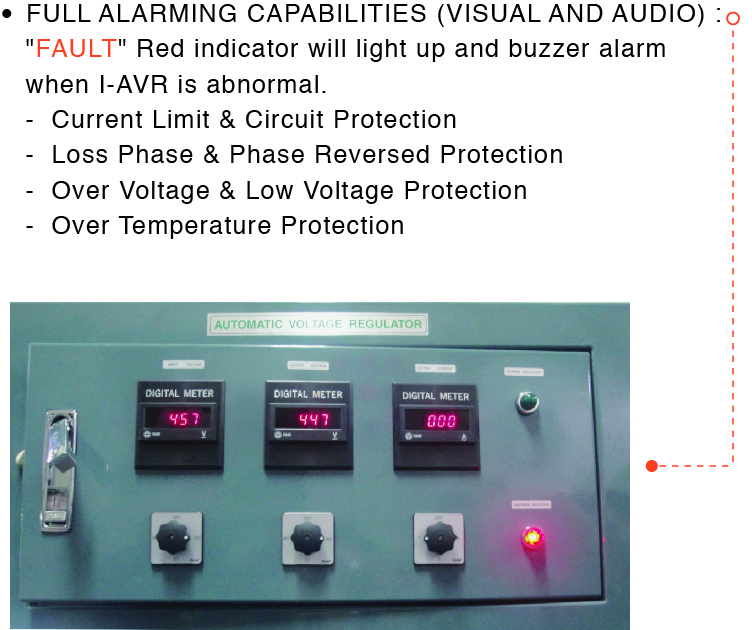

•   DIGITAL DISPLAY INPUT VOLTAGE, OUTPUT VOLTAGE, OUTPUT AMPERE

     By means of 3-Phase AS / VS Change Over Switch,easily to see Input

     Voltage, Output Voltage, Output  Ampere per each phase. (Option: Meter

     with Wide Angle Hanging Wire type)

•   OPERATION SYSTEM: AUTOMATIC, ELECTRIC AND MANUAL

•   CUSTOMIZATION WELCOME

•   SATECH POWER looking forward to serving YOU !

** Satech Power Company Limited Taiwan provide True Galvanic Isolated On Line UPS, Static FIXED Voltage Frequency Converter, Heavy Duty Magnetic Induction type Automatic Voltage Stabilizer Regulator (Oil-immersed Cooling type and Air Forced Cooling type), Industrial Grade Servo Voltage Stabilizer Regulator,  Inductive Voltage Regulator, Variable Transformer, Power Inverter, Rectifier (Battery Charger), AC Power Source (Variable Frequency Variable Voltage), Transformer. **
